Brant Hydraulics の高性能機器

「Brant Hydraulicsには、お客様のために製造し、カスタマイズされた油圧シリンダー、油圧システム、油圧機器を製造できる高性能のプロ仕様の生産設備があります。」

当社には、テストベンチ、ボーリングマシン、さまざまな旋盤、研削装置、マシニングセンター、CNC旋盤、およびOEMのニーズを満たすその他の高度な機器があります

	Metric	Inches / Feet
Bore diameter (I.D.)	Up to 2 500 mm	Up to 100 inches
External diameter (O.D.)	Up to 3 000 mm	Up to 120 inches
Length	Up to 25 000 mm	Up to 1000 inches

Turning & Boring	Up to 2 500 mm / 100 inches external diameter Up to 25 000 mm / 1000 inches in length
Honing (vertical / horizontal / roller furnishing)	Up to 2 500 mm / 100 inches inside diameter Up to 25 000 mm / 1000 inches in length
Milling & Drilling (machining center)	Up to 17 230 mm / 680 inches in length Up to 5 060 mm / 200 inches in high Up to 2 350 mm / 95 inches wide
Grinding	Up to 2500 mm diameter 100 inches Up to 16 000 mm / 630 inches in length
Polishing	Up to 2 500 mm diameter / 100 inches Up to 25 000 mm / 1000 inches in length
Welding	TIG / GTAW (Gas Tungsten Arc Welding), MIG / GMAW (Gas Metal Arc Welding), SAW (Submerged Arc Welding)

Maximum crane overhead lifting capacity: 60 Tons

テストベンチ

Brant Hydraulics received an ISO 17025 Laboratory Certification certified by the world recognized International Laboratory Accreditation Cooperation. Putting them to the forefront among cylinder and dampers producers.

ホーニング盤 (Skiving & Roller Burnishing)

Brant has high efficient and accurate Honing machine facilities to provide machining from 20mm to 2,000mm in diameter and over 12,000mm in length. These advanced machines also supply to the customers who need this service particularly.

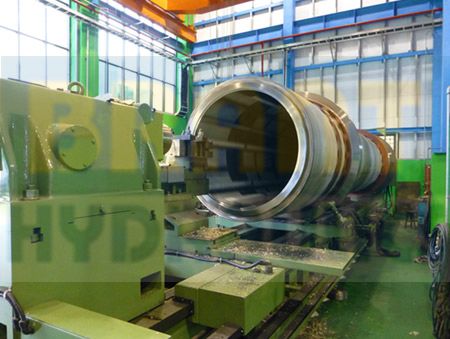

各種旋盤

Brant's large lathes can manufacture various kinds of cylinders and dampers because they have maximum swiveling radius from standard size to 1500mm and over 10M in length.

一般旋盤

Brant utilizes different kinds of precise lathe equipment to undertake all kinds of lathe processing works with several fixtures and tools to process the spare parts of cylinder and dampers.

研削装置

Brant applies various kinds of grinding machines which can grind the different sizes of cylinder rod and dampers from standard diameter up to 1500mm and its length can be over 10m.

マシニングセンター

To produce special shape of cylinder, damper, and machinery, Brant owns #3-50-#6 centralized machining equipment with wide range of processing technique and accuracy rate.

CNC旋盤

Brant has wide range size of CNC lathe, from #2 to #7. With such high technical equipment, Brant is doubtless to mass-produce various kinds of components of cylinder and damper with top quality.
