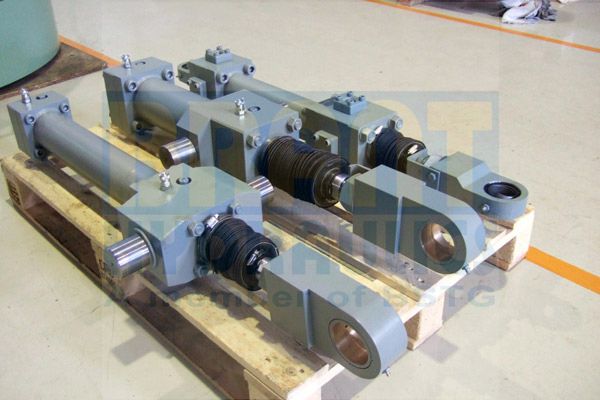

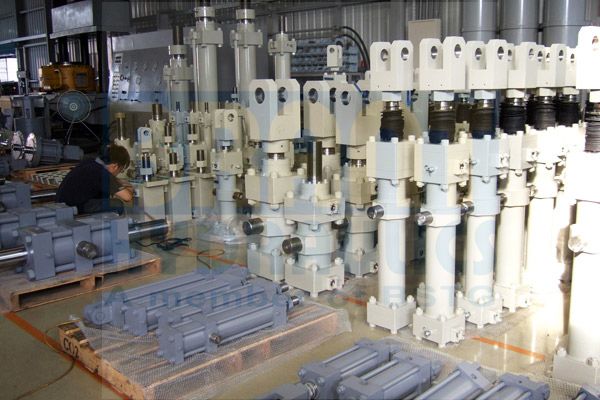

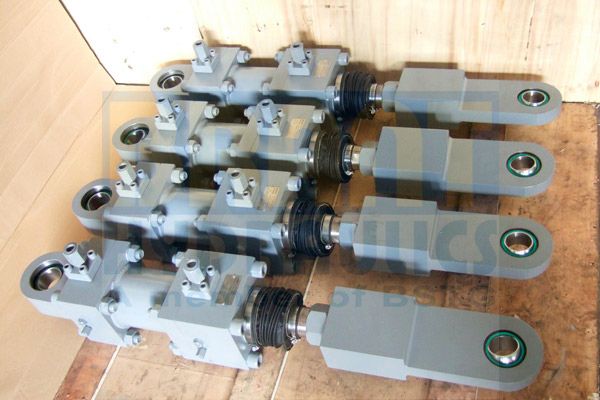

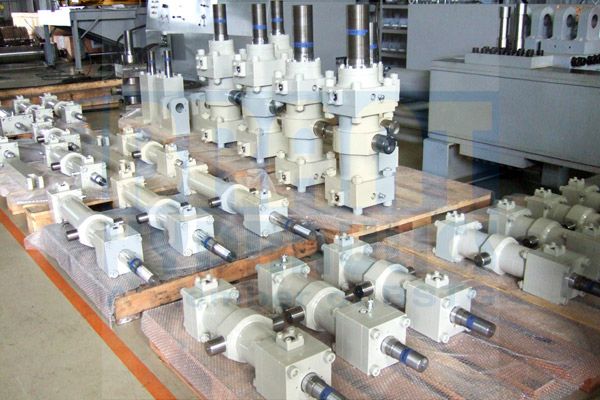

JOHS 110 Hydraulic Cylinders
- Standards: JOHS 110
- 6 mounting styles
- Bore Ø: 40 to 250 mm
- Rod Ø: 22.4 to 180 mm
- Stroke length up to 2m
- Hydraulic cylinders with bores of 40 to 250 mm designed to be installed and used on heavy machinery including steel mills
- Heavy-duty type resistant to surge pressure, vibration and impact
- High-performance hydraulic cylinders designed through careful examination of machining accuracy, surface treatment and sealing materials
- Design based on advanced techniques allows the cylinders to be used for special purposes
- Conforming to JOHS-110 of the Japan Fluid Power association.
Contact us or Email us for more details.
Nominal pressure: 7 MPa / 14 MPa
Max. working pressure: 14 MPa / 23 MPa
Working temperature range: -10 °C to +80 °C
Working speed range: Ø40 to Ø160: 10 to 500 mm/s Ø160 to Ø250: 20 to 500 mm/s
Paint Color: Munsell 7.5 BG 5.5/2.5
Applicable fluid: Petroleum-based fluid is recommended.
*Above information is for references only, please contact us for custom specification.
Higher operating pressures on request.
Installation: Optional
Acceptance:

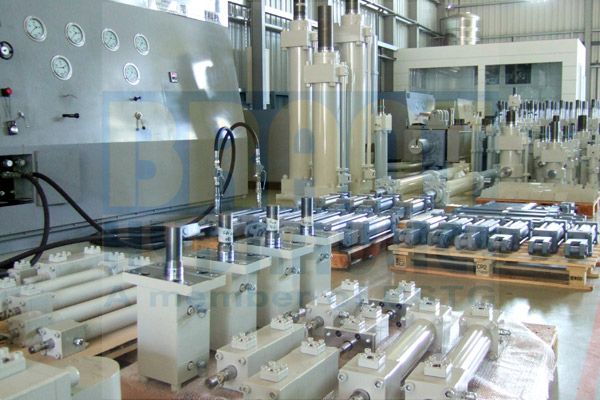

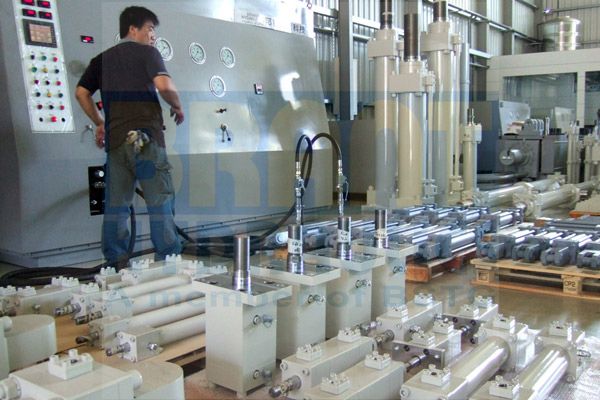

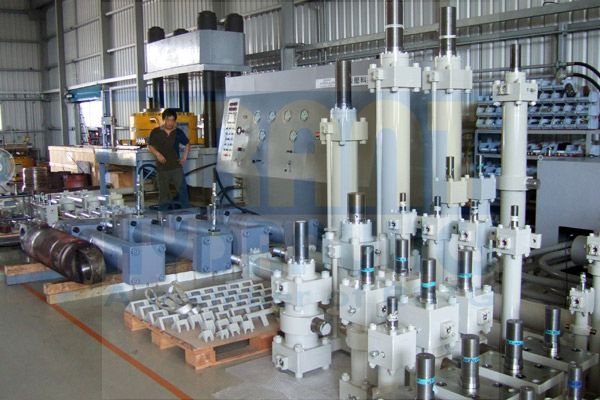

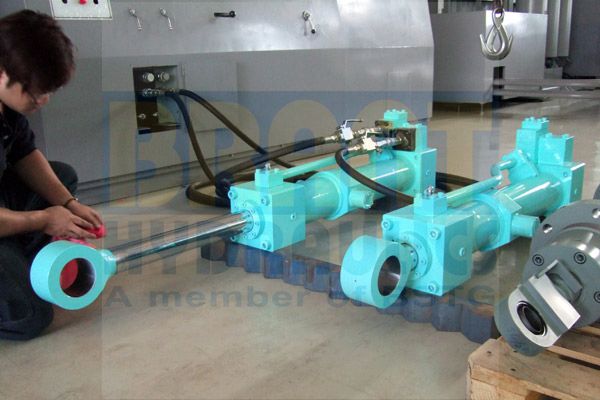

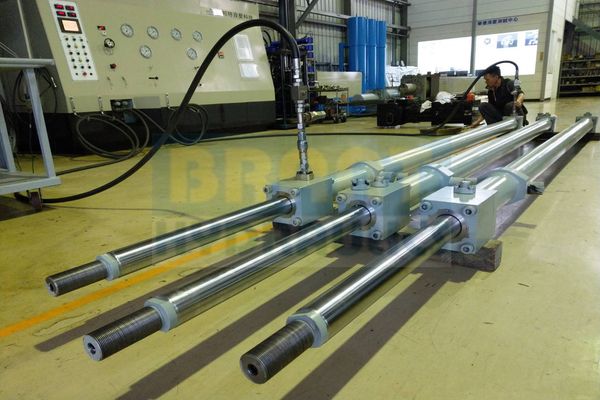

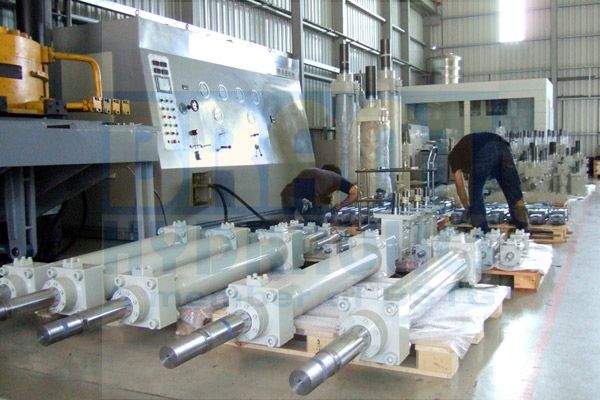

Each cylinder is tested to Brant standards. Cylinders whose application data lies outside the stated values can be offered as a special version. Cylinders with piston Ø > 250 mm are available on request. For assembly, commissioning and maintenance cylinders, please contact us for more details.
