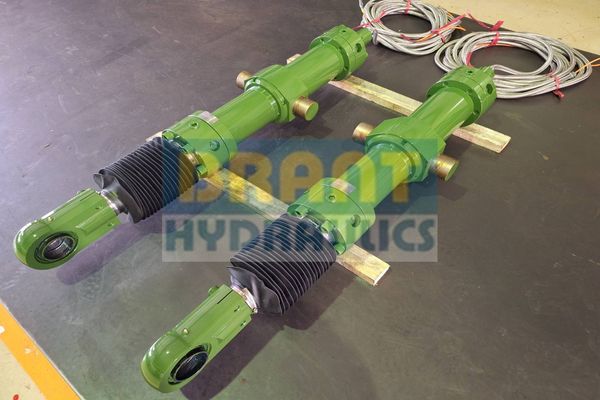

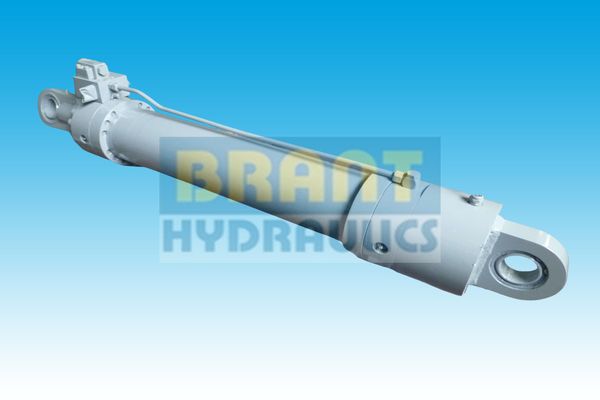

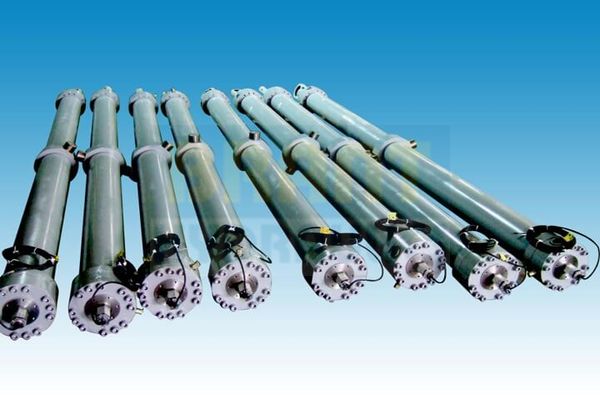

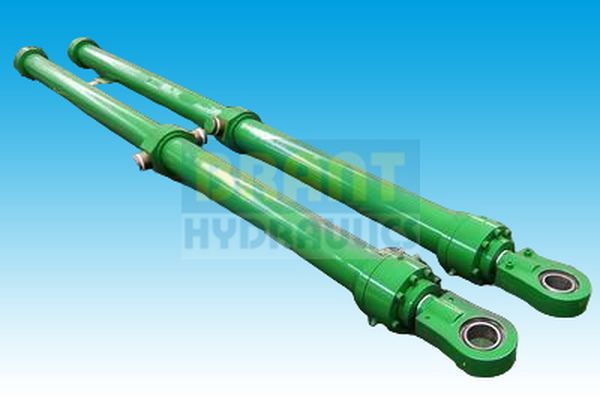

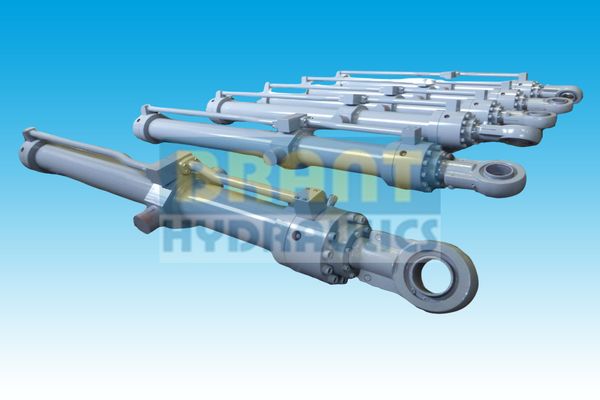

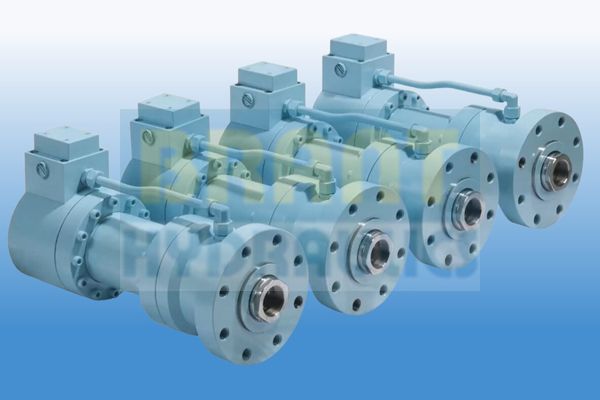

ISO & DIN Hydraulic Cylinders (w/ linear tranducer)

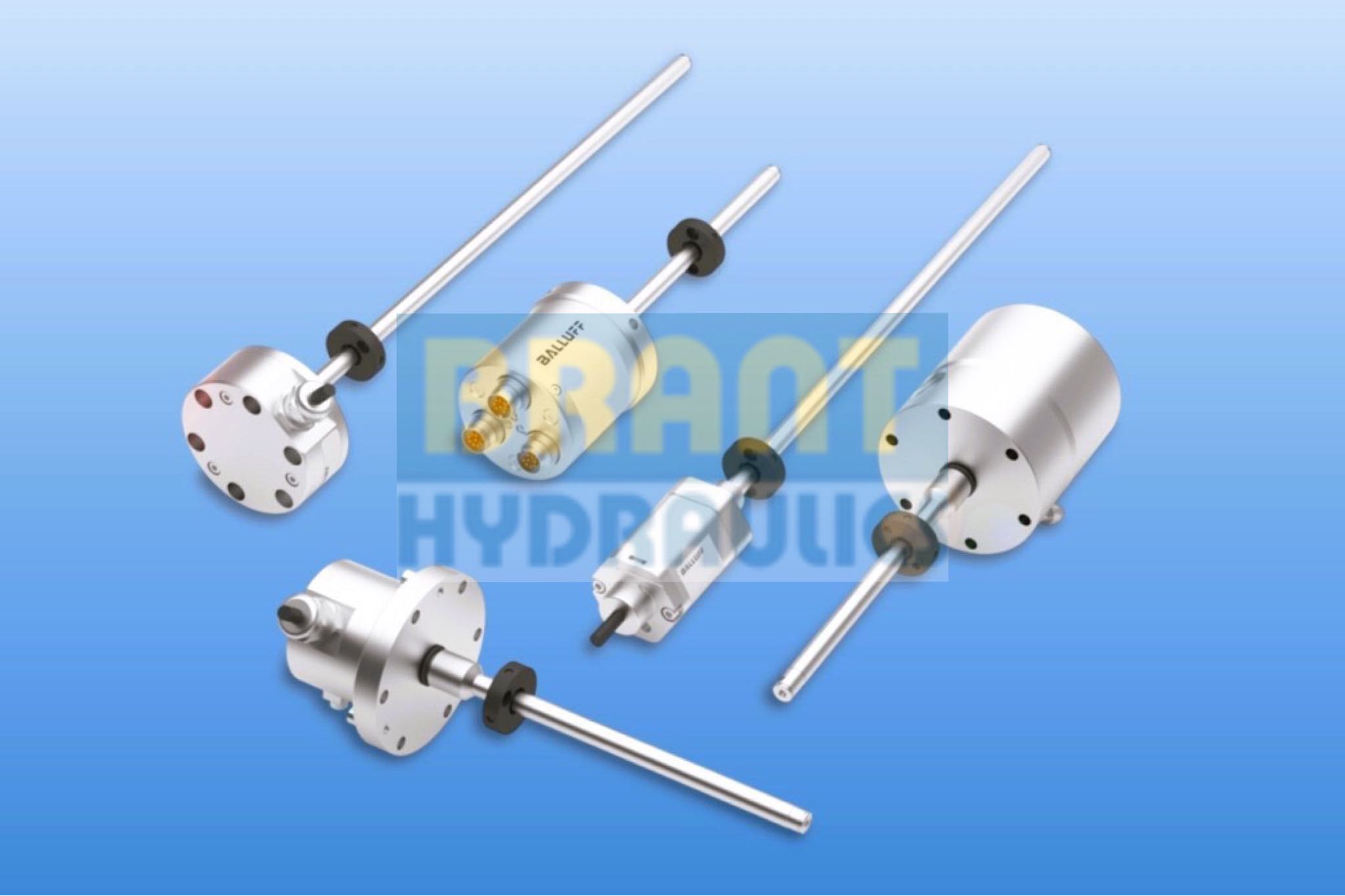

The ISO 6022 / 6020-1 / 6020-2 / DIN 24333 standard defines the specifications for hydraulic cylinders used in industrial applications. Brant Hydraulics is more capable of providing different types of sensors (linear tranducer) for ISO and DIN standard cylinders.
These cylinders are designed to ensure reliability, efficiency, and compatibility across various machinery and equipment. ISO and DIN standard cylinders are characterized by their robust construction, which allows them to withstand high pressures and provide smooth operation.
Brant Hydraulics Manufacturing Capabilities
- Standards: ISO 6020-1, ISO 6020-2, ISO 6022 DIN 24333
- 6 mounting styles
- Bore Ø: 40 to 320 mm
- Rod Ø: 25 to 220 mm
- Stroke length up to 6 m
Brant Hydraulics is proud to offer manufacturing services for ISO and DIN standard cylinders. With our advanced engineering expertise and state-of-the-art manufacturing facilities, we can produce high-quality hydraulic cylinders that meet the stringent requirements of the ISO and DIN standard. Our cylinders are designed for durability and performance, making them suitable for a wide range of applications in industries such as construction, agriculture, and manufacturing.
We focus on customization to meet specific client needs, ensuring that each cylinder is tailored to fit seamlessly into existing systems. Our commitment to quality and precision guarantees that every hydraulic cylinder we manufacture adheres to the highest industry standards.
For reliable and efficient hydraulic solutions, Brant Hydraulics is your trusted partner in the production of ISO and DIN standard cylinders.
Contact us or Email us for more details.
Nominal pressure: 250 bar
Static proof pressure: 375 bar
Higher operating pressures on request.
The specified operating pressures are only valid for applications with shock-free operation. If extreme loads occur, e.g. as happens in high sequence cycles, the fixings and piston rod thread connections need to be designed for durability (fatigue strength).
Installation: Optional
Pressure fluid / pressure fluid temperature range:
- HL, HLP, HFD-R: -20 °C to +80 °C
- HFA: +5 °C to +55 °C
- Water glycole HFC on request
Viscosity range: 2.8 to 380 mm2 /s
ISO cleanliness class
Maximum permissible degree of pressure fluid contamination is to ISO 4406 (c) class 20/18/15.
Stroke velocity: Up to 0.5 m/s (depending on the connection ports), higher stroke velocities on request.
Bleed screw as standard:Secured against unscrewing.
Undercoat:
The hydraulic cylinders are, as standard, painted with a max. thickness of 80 μm. Other color tones on request.
Acceptance:
Each hydraulic cylinder is tested to Brant standards. Cylinders whose application data lies outside the stated values can be offered as a special version. Hydraulic Cylinders with piston Ø > 320 mm are available on request. For assembly, commissioning and maintenance cylinders, please contact us for more details.
